Gaskets For Schmidt Plate Heat Exchangers

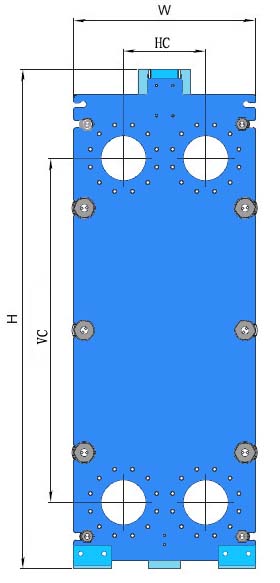

Model | Sigma 16 | Sigma 17 | Sigma 22 | Sigma 26 | Sigma 27 | Sigma 30 |
HC=mm | 110 | 175 | 174 | |||
VC=mm | 868 | 980 | 980 | |||
Model | Sigma 32 | Sigma 37 | Sigma 52 | Sigma 64 | Sigma 65 | Sigma 85 |
HC=mm | 230 | 218 | 314 | 290 | 290 | 290 |
VC=mm | 1056 | 1076 | 1252 | 1471 | 1471 | 1928 |
Model | Sigma 114 | Sigma M27 | Sigma M36 | Sigma M37 | Sigma M66 | Sigma M76 |
HC=mm | 425 | |||||
VC=mm | 1675 | |||||
Model | Sigma M106 | Star 45 | Star 90 | Sigma X19 | Sigma X13 | Sigma X29 |
HC=mm | 165 | |||||
VC=mm | 750 |
