Gaskets for APV Plate Heat Exchangers
|
Model |
A055 |
A085 |
QD030 |
QD055 |
QD080 |
QE055 |
QE080 |
|

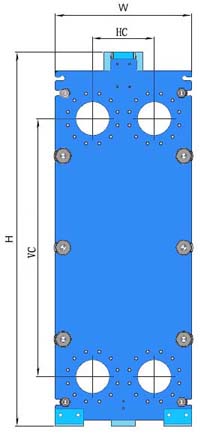

HC=mm |
380 |
380 |
310 |
310 |
310 |
310 |
310 |
|
VC=mm |
1056 |
1531 |
742 |
1237 |
1756 |
1237 |
1756 |
|
|
|||||||
|
Model |
B063L |
B063S |
B110L |
B110S |
B134L |
B134S |
B158L |
|
HC=mm |
486 |
486 |
486 |
486 |
486 |
486 |
486 |
|
VC=mm |
1043 |
1043 |
1523 |
1523 |
1843 |
1843 |
2110 |
|
|
|||||||
|
Model |
B158S |
B205L |
B205S |
SR1 |
SR2 |
SR3 |
SR6AA |
|
HC=mm |
486 |
486 |
486 |
130 |
180 |
262 |
314 |
|
VC=mm |
2110 |
2590 |
2590 |
490 |
700 |
1022 |
2102 |
|
|
|||||||
|
Model |
SR6AG |
SR6GH |
SR6GL |
SR9 |
SR9Clip |
SD9 |
SR14AD |
|
HC=mm |
314 |
314 |
314 |
|
|
|
486 |
|
VC=mm |
1891 |
833 |
1256 |
|
|
|
2003 |
|
|
|||||||
|
Model |
SR14AH |
SR14AN |
SR14AP |
SR14GD |
SR23AO |
SR23PV |
SR23VO |
|
HC=mm |
486 |
486 |
486 |
486 |
|
|
|
|
VC=mm |
1763 |
2243 |
1522 |
1043 |
|
|
|
|
|
|||||||
|
Model |
J060 |
J092 |
J107 |
J185 |
M92 |
M107 |
M185 |
|
HC=mm |
465 |
465 |
465 |
465 |
465 |
465 |
465 |
|
VC=mm |
915 |
1290 |
1480 |
2415 |
1290 |
1477 |
2415 |
|
|
|||||||
|
Model |
TR9AL |
TR9AV |
TR9GL |
TR9GN |
LR9AL |
LR9GL |
LR9GN |
|
HC=mm |
409 |
409 |
409 |
409 |
409 |
409 |
|
|
VC=mm |
2329 |
1817 |
1033 |
1465 |
2329 |
1033 |
|
