Gaskets And Plates For Funke Plate Heat Exchanger

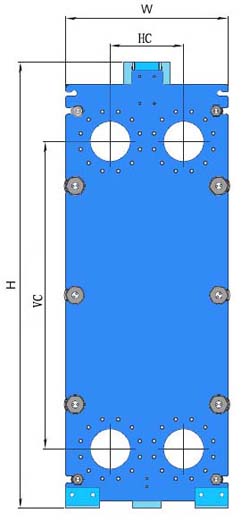

Model FP04 FP05 FP08 FP09 FP10
W=mm 65 70 65 70 126
H=mm 336 381 675 676 494
　
Model FP14 FP16 FP20 FP22 FP31
W=mm 135 126 135 　126 225
H=mm 590 694 819 894　 894
　
Model FP40 FP41 FP205

FP50

 FP60
W=mm 225 290 225 450 　290
H=mm 1141 941 719 1080 　1306
　
Model FP80
W=mm 290
H=mm 1671
