 Gasket for Alfa Laval Plate Heat Exchanger





Model M3 M3X M6 M6M M6MD M6MW M6MX

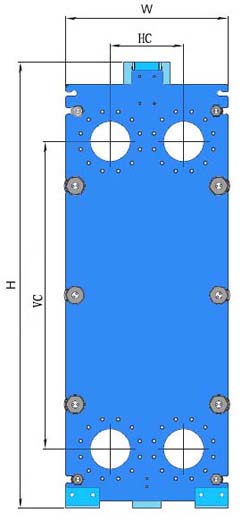

HC=mm 60 60 140 140 140 140 140
VC=mm 357 357 640 640 640 640 640

Model MS6 M10M M10B M10BD M10BW MS10 M15B
HC=mm   225 225 225 225   298
VC=mm   719 719 719 719   1294

Model M15M M15F MK15BW MS15 M20M M20MW MX25B
HC=mm 298 304 298   353 353 439
VC=mm 1294 1294 1044   1478 1478 1939

Model MX25M M30 M30D MA30M MA30S MA30W P12/122
HC=mm   596 596 561 555 561
VC=mm   1842 1842 1811 1815 1811

Model P12/124 P13 P132 P14 P14/L1 P145 P15
HC=mm   165 165 264     324
VC=mm   800 800 1032     1500

Model P16 P17 P2 P20 P225 P25 P252
HC=mm 530 530 135
VC=mm 1200 1865 591

Model P26 P30 P31 P32 P36 P41 P45
HC=mm 135 72 230 230 230   324
VC=mm 591 570 945 945 945   1200
